What is Codewalk?

Codewalk analyzes any codebase and gives you:

Module detection — groups files into logical modules automatically
Dependency graph — extracts every import/require → builds the full dependency map
Blast radius — "if I change this file, what breaks?"
Reading order — optimal file reading sequence (dependencies first)
Execution flow — entry points, module-to-module and file-to-file dependency flow
AI chat — ask anything about the code, powered by RAG + tool-calling agent
Code review — review git diffs for bugs, security issues, and style (context-enriched, OWASP-focused)
Incremental reindex — re-embed only changed files using content hash comparison
Graph intelligence — DuckDB + igraph: symbol-level call graph, cycle detection, centrality analysis, import chain tracing
Corrective RAG — distance-based chunk filtering + LLM answer grading + query rewriting for higher quality answers
Voice interface — talk to your codebase hands-free: mic → transcribe → Copilot routes → speak answer

Three ways to use it locally, plus optional cloud indexing:

Interface	Best for
Web UI (Next.js)	Visual exploration — Knowledge Graph UI, diagrams, module browser, blast radius viewer
MCP Server	VS Code Copilot, Claude Code, Cursor — AI agents use tools directly
REST API	Scripts, CI/CD, custom integrations

Cloud (optional): Push to GitHub → Codewalk Cloud indexes on the server → MCP downloads the index and queries locally. See Cloud Deployment.

🎙️ Voice is available via both MCP (codewalk_voice_ask + codewalk_speak) and REST API (POST /voice/ask) — ask questions by speaking, hear answers read aloud.

Why Codewalk?

Scenario	How Codewalk helps
New dev joins the team	Point Codewalk at the repo → get an overview, module map, and reading order. Self-onboard in hours instead of weeks of "hey, can you explain this?"
LLM token costs are high	Without RAG, the LLM needs your entire codebase in context — slow and expensive. Codewalk embeds code into a vector DB and retrieves only the relevant chunks per query. Faster answers, fraction of the tokens.
Senior dev switches modules	You know the auth module but now need to work on payments. Get module info, blast radius, and execution flow without bugging the payments team.
Before a refactor	Check blast radius before touching shared code. "If I change `base_model.py`, what breaks?" — get the answer before you break prod.
PR reviews	Run `codewalk_run_review` (MCP) or `POST /review` (API) — automated review with OWASP security checks, blast radius warnings, and team guidelines matching. MCP mode returns enriched context so the calling model (Claude/GPT) performs the review directly — no separate LLM needed.
Documentation is outdated	Codewalk analyzes the actual code, not stale wiki pages. Always up to date.

🔬 Code Review — Powered by the Intelligence Layer

Codewalk's review engine is built on top of the codebase intelligence layer. It doesn't just lint — it understands your architecture, knows what files are risky, and reviews with full context.

How it works

git diff → Static Analysis (graph risk, PageRank, cycles, blast radius)
         → Batch files (3-5 per batch, grouped by feature)
         → Host LLM reviews each batch with full context
         → Submit findings to disk per batch (JSON + Markdown, context stays clean)
         → Final summary: raw findings grouped by severity

What makes it different

Capability	CodeRabbit / GitHub Copilot Review	Codewalk Review
Architecture awareness	❌ No dependency graph	✅ DuckDB + igraph: PageRank, fan-in, cycles, bottlenecks
Blast radius	❌	✅ "This file has 23 callers — review with extra care"
Works without indexing	—	✅ Just needs a git repo (graph enhances but isn't required)
Batched for large PRs	Dumps everything at once	✅ 3-5 files per batch, sorted by risk, host LLM stays focused
Custom rubrics	Limited	✅ Per-language + per-framework + team guidelines
Fix application	Suggests only	✅ Accept/reject → apply atomically → verify with tests
Severity levels	varies	`blocker` · `error` · `suggestion`

Zero-setup review

Review runs on any git repo — no codewalk_analyze_codebase needed. The dependency graph is built automatically on first review (~5s) and cached:

Component	Auto (graph-only)	Full index (after analyze)
Git diff + file content	✅	✅
Rubrics + team guidelines	✅	✅
Stack detection	✅ (from file extensions)	✅ (cached)
Blast radius, PageRank, cycles	✅ Built on-the-fly (~5s)	✅ From cached DuckDB
Neighborhood (callers, tests)	⚠️ Tests + interfaces only	✅ Full (from ChromaDB)
Blast radius warnings	⚠️ Not available	✅ Transitive impact

Severity levels

Level	Value	Meaning
Blocker	`"blocker"`	Must fix before merge — blocks the PR
Error	`"error"`	Should fix — real bugs, logic errors, security risks
Suggestion	`"suggestion"`	Nice to have — style, naming, minor improvements

MCP review flow

codewalk_run_review() → session + first batch (reviews ALL changes by default: staged + unstaged + untracked; pass target_branch='...' to diff against a branch)
Host reviews batch → codewalk_submit_batch_findings(session_id, [...]) → saved to disk as JSON; a hard-wrapped Markdown companion is also written for easy reading
codewalk_review_next_batch(session_id) → next batch (context window is clean)
Repeat until all batches done
codewalk_get_review_summary(session_id) → structured summary of raw findings
User edits llm_findings.json → sets user_verdict to accepted/rejected → codewalk_accept_and_verify_fix returns the accepted findings → the host applies them and verifies with codewalk_run_static_analysis + codewalk_run_tests
(Optional) codewalk_re_review() → fresh review that hides rejected findings

API review flow

curl -X POST http://localhost:8000/review \
  -H "Content-Type: application/json" \
  -d '{}'

Runs: static analysis → batch review (parallel LLM) → raw findings JSON (issues + static_issues + session_id).

Fix flow (Copilot-style diff review):

Accept/reject findings in the UI
POST /review/preview-edits — generates the proposed diff per accepted finding (dry run, no writes)
Review the diffs, approve selected edits
POST /review/apply-edits — writes approved diffs, verifies with static analysis + tests, rolls back failures (a write is refused if the file changed since the preview)

✨ Features

Feature	Description
🔍 Module Detection	Auto-groups files into packages/modules by directory structure
🕸️ Dependency Graph	Parses imports across 15+ languages via tree-sitter
💥 Blast Radius	BFS on reversed dependency graph → shows transitive impact of any change
📖 Reading Order	Topological sort → "read config.py before embedder.py because embedder imports config"
🔄 Execution Flow	Entry points, module/file dependency chains, D3/ELK diagrams
🤖 AI Chat	LangGraph agent with 7 tools, multi-turn conversation with memory
🔎 Semantic Search	ChromaDB vector search on embedded code chunks (RAG)
🔬 Code Review	Context-enriched review pipeline: test coverage, blast radius, guidelines RAG, deep analysis
🔄 Incremental Reindex	Content hash comparison — only re-embeds changed files, skips unchanged

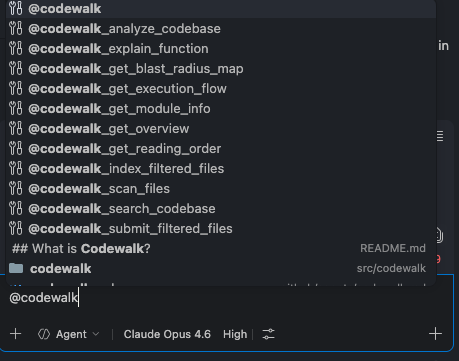

🧩 MCP Server	43 MCP tools for VS Code Copilot / Claude Code / Cursor / Codex
🎙️ Voice Interface	Talk to your codebase — mic recording, local STT (faster-whisper), agent-driven routing (MCP + API), TTS response
🔬 Graph Intelligence	DuckDB persistent graph + igraph C-speed traversal: cycle detection, centrality, import chain tracing
🧬 Corrective RAG	Distance-based chunk filtering (free) + LLM answer grading + query rewriting for reliable answers
📦 Parent-Child Chunking	Full functions stored as parents, sub-chunks searched — retrieve complete context on match
⚡ Parallel Embedding	Producer-consumer pipeline — CPU chunking overlaps with GPU embedding
🏗️ Multi-Provider LLM	Ollama (local), OpenAI, Anthropic, Groq, Gemini, OpenRouter, DeepSeek
📚 Doc Indexing	Index team docs (.md, .pdf, .txt) — search and ask questions with source citations
🔄 Reflection	Actor→Critic→Improve loop used by deep research to refine cross-cutting reports
🧑‍💻 Human-in-the-Loop	Approval gate before any code/file modification — LangGraph checkpoint + interrupt
🔬 Deep Research	Fan-out parallel search → merge → synthesize → reflect for complex cross-cutting questions
🏗️ Architecture Health	Graph stats, bottleneck files (betweenness centrality), PageRank, cycle detection with fix suggestions
🌐 15+ Languages	Python, JS, TS, Java, Go, Rust, Ruby, PHP, C#, C++, C, Dart, Kotlin, Swift, YAML

Supported Languages

Language	Extensions	Tree-sitter Parsing	Import Extraction
Python	`.py`	✅	✅
JavaScript	`.js`, `.jsx`	✅	✅
TypeScript	`.ts`, `.tsx`	✅	✅
Java	`.java`	✅	✅
Go	`.go`	✅	✅
Rust	`.rs`	✅	✅
Ruby	`.rb`	✅	✅
PHP	`.php`	✅	✅
C#	`.cs`	✅	✅
C++	`.cpp`	✅	✅
C	`.c`	✅	✅
Kotlin	`.kt`	✅	✅
Swift	`.swift`	✅	✅
Dart	`.dart`	✅ (optional install)	✅
YAML	`.yaml`, `.yml`	—	—
JSON	`.json`	—	—
TOML	`.toml`	—	—
Markdown	`.md`	—	—

Tree-sitter parsing = extracts functions, classes, and methods for accurate chunking and function explanations.
Import extraction = builds the dependency graph, blast radius, and reading order.
Languages without tree-sitter support still get indexed via text splitting — they work with semantic search and AI chat, just without function-level granularity.

🆚 Codewalk vs. alternatives

Codewalk is not another AI autocomplete. It is a codebase intelligence layer: it builds a persistent dependency graph, embeds your code, indexes your docs, and exposes that intelligence through a UI, an MCP server, and an API.

If you need deep cross-file reasoning, blast-radius analysis, or AI review inside your existing IDE agent, Codewalk fits where general-purpose assistants stop.

Use case	Typical approach	What Codewalk does differently
Explain this codebase	Ask a generic chat model and paste files	Builds a live graph + RAG so answers are grounded and cite real files
PR review	Lint + human review	LLM review with blast-radius, architecture, and custom guidelines
Refactor shared code	Grep for imports	Dependency graph + blast radius showing transitive impact
Onboard a new developer	Read wiki pages	Reading order + module map generated from actual code
Team knowledge	Search Confluence/Notion	Index docs alongside code and ask with citations
AI agent tooling	Write custom scripts or prompts	43 MCP tools the agent can call directly

🎬 Demo

🖥️ Frontend — Knowledge Graph UI

Codewalk ships with a Next.js frontend for visual codebase exploration.

What you can do

Structural view — explore the repo as a layered dependency graph: modules, files, classes, and functions laid out as an interactive path flow.
Knowledge view — semantic graph of entities and relationships surfaced by the AI analysis.
Path Finder — pick a source and target node and discover import/dependency paths between them.
Search — fuzzy + semantic search across files, symbols, and concepts.
Blast Radius / Diff mode — visually highlight changed and affected nodes.
Themes — switch between presets (Dark Gold, Dark Ocean, Dark Forest, Dark Rose, Light Minimal), accent colors, and heading fonts; your choice is saved locally.
Info Panel — unified node details, metrics, source preview, and project overview.
KineticShell navigation — index-dependent tabs stay locked until GET /index-status reports indexed: true.
Cloud Admin — visit /admin to register repos, list repos, trigger indexing, copy tokens, and check server health/version.

Run it

Quick start from a target repo

If you already have the Codewalk repo cloned elsewhere, run the combined launcher from the repo you want to explore:

/path/to/codewalk/scripts/run-ui-for-repo.sh

This starts the API from your current directory (discovering codewalk.yaml) and the frontend from the Codewalk checkout, automatically setting CODEWALK_REPO_PATH so the UI reads .codewalk/ from your repo.

Frontend-only development

cd frontend
npm install
npm run dev

If you change frontend code and see stale chunk 404s or client-side exceptions, restart with a clean build cache:

npm run dev:clean      # clears .next and starts fresh
npm run restart        # kills port 3000 and restarts dev
# or
./scripts/restart-frontend.sh

Set NEXT_PUBLIC_API_URL to point at the backend (e.g. http://localhost:8000 or https://api.codewalk.xyz).

Then open http://localhost:3000, analyze a repo, and click Knowledge Graph.

Demo

🎥 [Video coming soon — add frontend walkthrough here]

⚙️ Setup (local)

Production cloud server? See FULL_SETUP_GUIDE.md — step-by-step: Hetzner, api.codewalk.xyz, GitHub App, webhooks, MCP download.

Prerequisites

Tool	Version	Check
Python	3.10+	`python3 --version`
Node.js	18+	`node --version`
Git	Any	`git --version`
Ollama (optional)	Latest	`ollama --version`

1. Clone the codewalk repo

git clone https://github.com/gupta29470/codewalk.git
cd codewalk

2. Backend setup in codewalk

# Create virtual environment
python3 -m venv .codewalk-env
source .codewalk-env/bin/activate    # macOS / Linux
# .codewalk-env\Scripts\activate     # Windows

# Install Python dependencies
pip install -r requirements.txt

If you're behind a VPN, corporate proxy, or private network, package installations and model downloads may fail due to blocked connections or SSL certificate errors.

Recommended: Use a normal (non-VPN) network for first-time setup.

Codewalk's setup downloads packages from PyPI, npm, and HuggingFace. These are one-time downloads — once installed, everything runs locally. If possible:

Disconnect from VPN temporarily
Run the setup steps (pip install, npm install, start the backend once to download the embedding model)
Reconnect to VPN — everything is cached locally, no more downloads needed

After the first run, Codewalk works fully offline (with Ollama). The VPN/corporate network won't cause any issues.

# If you get an SSH error, run this first:
git config --global url."https://github.com/".insteadOf "[email protected]:"

# Then install:
pip install "tree-sitter-dart @ git+https://github.com/UserNobody14/tree-sitter-dart.git"

Without this, Codewalk still works — Dart files just won't get tree-sitter parsing (falls back to text splitting).

3. Frontend setup in codewalk

cd frontend
npm install
cd ..

4. Configure environment in codewalk

Copy the template: cp env.local.example.txt .env then edit:

# ─── LLM Configuration ──────────────────────────────────────
# Provider: ollama | openai | anthropic | gemini | groq | openrouter
LLM_PROVIDER=ollama
LLM_MODEL=qwen2.5-coder:7b

# ─── Embeddings ──────────────────────────────────────────────
EMBEDDING_MODEL=jinaai/jina-code-embeddings-1.5b

# ─── API Keys (only fill the one you're using) ──────────────
# GROQ_API_KEY=gsk_...
# OPENAI_API_KEY=sk-...
# ANTHROPIC_API_KEY=sk-ant-...
# GOOGLE_API_KEY=AI...
# OPENROUTER_API_KEY=sk-or-...

5. Pull an Ollama model (if using local LLM)

ollama pull qwen2.5-coder:7b

Model	Size	Tool Calling	Best For
`qwen2.5-coder:7b`	4.7 GB	✅	Code-focused, fast
`qwen3.5:latest` (8B)	6.6 GB	✅	General + code
`qwen3.5:27b`	17 GB	✅	Best accuracy

🚀 Usage

Option 1: Web UI

Quick launch from a target repo (recommended for exploration):

From the repo you want to explore, run the combined launcher in the Codewalk checkout:

/path/to/codewalk/scripts/run-ui-for-repo.sh

It kills any process on ports 8000/3000, starts the API from the target repo, starts the frontend from the Codewalk checkout, and sets CODEWALK_REPO_PATH automatically. Then open http://localhost:3000.

Manual two-terminal setup (for frontend/backend development):

Open two terminals in codewalk:

Terminal 1 — Backend API

source .codewalk-env/bin/activate
uvicorn src.codewalk.api.main:app --reload --port 8000

Terminal 2 — Frontend

cd frontend
npm run dev

If the frontend throws stale chunk 404s after pulling or editing code, restart it cleanly:

npm run dev:clean
# or from the project root
./scripts/restart-frontend.sh

Open http://localhost:3000 → click Analyze Codebase (the repo is discovered from the working directory via codewalk.yaml).

Then explore:

Knowledge Graph — interactive structural + knowledge graph, layer/module legend, node-category filters, detail-level toggle, persona selector, Path Finder, export menu, code viewer, file explorer, tour/onboarding, mobile layout, edge styling, and diff overlay
Overview — tech stack, modules, dependency diagram, riskiest files
Modules — browse all modules, click one for file list + dependencies
Blast Radius — which files break if you change each file
Reading Order — optimal file reading sequence with risk levels
Execution Flow — D3/ELK diagram of module/file dependencies
Chat — ask any question ("explain the authentication flow", "what does scanner.py do?")
Code Review — review git diffs, review single files, load team guidelines
Voice — click the mic, ask a question by speaking, hear the answer read aloud
Smart Reindex — incremental re-embed with stats (skipped, changed, deleted)
Research — deep cross-cutting reports with a structured architecture diagram card
Cloud Admin — /admin page for repo registration, token management, and server health

Option 2: MCP Server (VS Code Copilot / Claude Code / Cursor)

See MCP Integration below.

Option 3: REST API

# Start the backend
source .codewalk-env/bin/activate
uvicorn src.codewalk.api.main:app --reload --port 8000

Step 1 — Analyze a codebase:

# Run from inside the repo you want to analyze (repo is discovered from cwd via codewalk.yaml)
curl -X POST http://localhost:8000/analyze \
  -H "Content-Type: application/json" \
  -d '{"index_mode": "auto"}'

Step 2 — Check index status and explore the results:

# Check whether the current workspace is indexed
# Optional: ?repo_path=/path/to/repo (defaults to cwd discovery)
curl "http://localhost:8000/index-status" | python3 -m json.tool

# Project overview (tech stack, modules, riskiest files)
curl http://localhost:8000/overview | python3 -m json.tool

# List all modules
curl http://localhost:8000/modules | python3 -m json.tool

# Dive into a specific module
curl http://localhost:8000/modules/auth | python3 -m json.tool

# What breaks if I change files in the auth module?
curl http://localhost:8000/blast-radius/auth | python3 -m json.tool

# Optimal reading order
curl http://localhost:8000/reading-order | python3 -m json.tool

# Execution flow (entry points, dependency chains)
curl http://localhost:8000/execution-flow | python3 -m json.tool

Step 3 — Chat with the agent:

# Ask a question
curl -X POST http://localhost:8000/chat \
  -H "Content-Type: application/json" \
  -d '{"message": "Explain this project", "thread_id": "thread-1"}'

# Follow-up (same thread_id = conversation memory)
curl -X POST http://localhost:8000/chat \
  -H "Content-Type: application/json" \
  -d '{"message": "What does the auth module do?", "thread_id": "thread-1"}'

# After code changes — refresh analysis without re-embedding
curl -X POST http://localhost:8000/refresh

# Incremental reindex — only re-embed changed files
curl -X POST http://localhost:8000/incremental-reindex

# Review current git diff for bugs, security, style
curl -X POST http://localhost:8000/review \
  -H "Content-Type: application/json" \
  -d '{"staged": false, "target_branch": "master"}'

See API Reference for full request/response details on every endpoint.

🔌 MCP Integration

Codewalk runs as an MCP (Model Context Protocol) server, so any AI agent that speaks MCP can use it.

Cloud MCP (index on server, query locally)

Cloud server indexes your repo on git push (GitHub App webhook)
Clone codewalk locally (MCP server code)
Open target repo in Cursor/VS Code (${workspaceFolder})
Configure MCP with cloud URL + repo token:

{
  "servers": {
    "codewalk": {
      "command": "/path/to/codewalk/.codewalk-env/bin/python",
      "args": [
        "-c",
        "import os, sys; sys.path.insert(0, os.environ['CODEWALK_PATH']); from src.codewalk.mcp.server import mcp; mcp.run(transport='stdio')"
      ],
      "cwd": "${workspaceFolder}",
      "env": {
        "CODEWALK_PATH": "/path/to/codewalk",
        "CODEWALK_SERVER_URL": "https://api.codewalk.xyz",
        "CODEWALK_REPO_NAME": "owner/repo",
        "CODEWALK_REPO_TOKEN": "cw_repo_xxxxxxxx"
      }
    }
  }
}

cwd should be the target repo (where codewalk.yaml lives). CODEWALK_PATH tells Python where to find the Codewalk source package. Open the target repo in your editor so the server starts from that workspace.

Get repo_token after first index (on server):

docker compose exec postgres psql -U codewalk -d codewalk -c \
  "SELECT repo_token FROM repos WHERE full_name='owner/repo';"

Run codewalk_connect_repo in Cursor or let analyze auto-download the index. Cloud sync tools include codewalk_pull_index, codewalk_connect_repo, codewalk_index_status, codewalk_check_version, and codewalk_show_knowledge_graph.

Every MCP tool is wrapped with a workspace-change guard (_refresh_state_if_moved) that re-discovers the current working directory and resets state if the workspace changes.

⚠️ One repo per MCP server process. Codewalk keeps runtime state (vector store, graph, repo path) in memory. Pointing the same running MCP server at multiple repos — or rapidly switching workspaces in the same process — can overwrite or corrupt that state. Use one editor window / one MCP connection per repo. The stdio transport is safe because each connection spawns a separate process, but do not route commands for different repos into the same server instance.

Local-only MCP (index on your machine)

No cloud — index runs locally via codewalk_analyze_codebase. After rebuild_analysis_cache, MCP embeds with index_from_paths_parallel (same pipeline helpers as the API, but MCP scans via scan_repo_files + codewalk.yaml excludes rather than calling full_index_parallel directly).

Surface	Local embed entrypoint	Notes
MCP `codewalk_analyze_codebase`	`index_from_paths_parallel`	`rebuild_analysis_cache` → parallel chunk/embed → `write_manifest`
API `POST /analyze` (+ `/analyze/stream`)	`full_index_parallel`	Same Chroma output under `{repo}/.codewalk/`

Review & approve fixes (agent + MCP)

You talk to your IDE agent; the agent calls Codewalk MCP tools. Codewalk does not render UI — each host has its own approve/reject experience (Cursor approval cards, Copilot chat, Claude Code prompts, etc.). The agent must present each fix and wait for your approval through that host UI (or yes/no in chat).

Agent runs codewalk_run_review (returns enriched context for the host LLM to review) or codewalk_review_file (runs the full pipeline on one file)
User edits llm_findings.json: set user_verdict to accepted or rejected for each finding
Apply + verify accepted fixes: codewalk_accept_and_verify_fix(session_id) returns every accepted finding with instructions — the host LLM applies them with its own editing tools, then verifies with codewalk_run_static_analysis + codewalk_run_tests. Codewalk never edits files over MCP.
After edits: codewalk_incremental_reindex

Full agent rules: src/codewalk/mcp/server.py FastMCP instructions (sent on MCP connect).

Example: @codewalk review my changes, then fix each issue only after I approve

Cloud re-download: codewalk_pull_index / codewalk_connect_repo / auto-download on analyze all replace local .codewalk/ (delete then extract). Force refresh: rm -rf .codewalk then pull.

MCP tools — index requirements

Tool	Index required?	Notes
`codewalk_analyze_codebase`	Builds/loads	Cloud download or local embed
`codewalk_generate_config`	No	Creates starter `codewalk.yaml`
Query tools (search, overview, modules, symbols, …)	Yes	`_require_index()` auto-loads disk
`codewalk_find_circular_dependencies`	Yes	Uses graph data
`codewalk_get_architecture_health`	Yes	Graph stats + cycles
`codewalk_incremental_reindex`, `codewalk_refresh_analysis`	Yes
`codewalk_run_review`, `codewalk_review_file`, `codewalk_get_stack_info`	Soft / Yes	Better with index; `run_review` returns context for the host LLM
`codewalk_get_review_details`	Yes	Reads persisted session
`codewalk_accept_and_verify_fix`	Yes	Returns accepted findings; host applies them itself, then verifies with run_static_analysis/run_tests
`codewalk_run_static_analysis`	No	ruff/mypy/eslint/etc.
`codewalk_run_tests`	No	pytest/npm test/etc.
`codewalk_pull_index`, `codewalk_connect_repo`, `codewalk_index_status`	Cloud config	Replace `.codewalk/` on download
Docs / guidelines / voice / `check_version` / `show_knowledge_graph`	Varies	See MCP server `instructions`

Starting the MCP Server in VS Code

Open VS Code in the codewalk project
Press Cmd+Shift+P (macOS) or Ctrl+Shift+P (Windows/Linux)

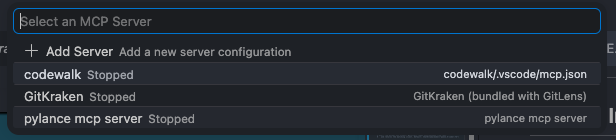

Type MCP: List Servers and select it
You'll see codewalk in the list

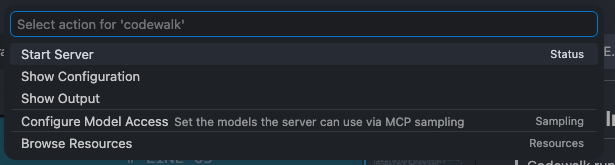

Click Start Server next to codewalk
The server starts in the background (stdio transport)
Open Copilot Chat → type @codewalk → all Codewalk MCP tools are available

VS Code Copilot

Add to .vscode/mcp.json in your desired project:

⚠️ Replace /path/to/codewalk with the actual absolute path where you cloned codewalk. cwd (${workspaceFolder}) should be the target repo so the server discovers codewalk.yaml. CODEWALK_PATH must point at the cloned Codewalk repo so src.codewalk.mcp.server resolves.

{
  "servers": {
    "codewalk": {
      "command": "/path/to/codewalk/.codewalk-env/bin/python",
      "args": [
        "-c",
        "import os, sys; sys.path.insert(0, os.environ['CODEWALK_PATH']); from src.codewalk.mcp.server import mcp; mcp.run(transport='stdio')"
      ],
      "cwd": "${workspaceFolder}",
      "env": {
        "CODEWALK_PATH": "/path/to/codewalk"
      }
    }
  }
}

Codewalk config (codewalk.yaml): Put repo-specific settings in the repo root:
docs_path: team-docs
code_guidelines: team-docs/code_guidelines.md
indexing:
  exclude:
    - tests/**
    - docs/**
    - scripts/legacy/**
    - "*.generated.*"
  include:
    - docs/architecture/**
indexing.exclude is a list of paths/patterns skipped during scanning. indexing.include overrides exclusions (and the core safety net) for specific paths. These are checked at scan time. Generate a starter config with stack-specific excludes via python -m src.codewalk.cli generate-config or @codewalk Run codewalk_generate_config.

Docs & guidelines:

docs_path indexes .md, .pdf, .txt, and .rst files for semantic search via /docs/search or codewalk_search_docs.

code_guidelines is an optional explicit path to the review-guidelines file. Codewalk loads guidelines in this priority order:

Explicit file — if code_guidelines: path/to/file.md is set in codewalk.yaml, read that file directly.

ChromaDB doc collection — search the indexed docs for a code_guidelines document (skipped in MCP review path to avoid cold-start latency).

Disk scan — scan docs_path for any file named code_guidelines.md / .txt / .rst.

None — no guidelines found; review proceeds without them.

For language/framework-specific review rubrics, place .md files in .codewalk/rubrics/ (e.g. .codewalk/rubrics/python.md, .codewalk/rubrics/python_fastapi.md, .codewalk/rubrics/core.md). These override built-in rubrics.

Customizing file filters: Codewalk uses a deterministic core safety net (src/codewalk/ingestion/file_filter.py) — no LLM involved. It always skips universally bad content (.git, node_modules, dependency/build/cache dirs, binaries, media, secrets, lock files, generated suffixes). Repo- or framework-specific exclusions (e.g., tools/, scripts/, cdk/, migrations/, story files) belong in codewalk.yaml (often generated by generate-config). If a folder or file is not being indexed that you need, you have three options:

codewalk.yaml indexing.include — override exclusions for specific paths. Example: ["docs/architecture/**", "src/migrations/schema.py"].

codewalk.yaml indexing.exclude — repo-specific dirs/patterns. Example: ["tests/**", "docs/**", "*.generated.*"].

.codewalkignore file — gitignore-style patterns in the repo root (see below).

You generally do not need to duplicate node_modules, .git, build dirs, etc. in codewalk.yaml; those are handled by the core safety net.

.codewalkignore — Create a .codewalkignore file in the root of the repo you're analyzing to skip specific files/directories:
# Skip test files
tests/
*_test.py

# Skip specific directories
data/
wiki/
blogs/

# Skip specific file patterns
*.config.js
setup.py
Syntax (gitignore-like):

folder/ — skip any path containing this directory

*.pattern — glob match against full path or filename

filename — matches exact filename or path segment

# comment — ignored

blank lines — ignored

Patterns are cached in _codewalkignore_patterns (loaded once per session). If you change the repo being analyzed, reset_codewalkignore() clears the cache so the next repo's .codewalkignore gets loaded.

Then in Copilot Chat: @codewalk → it will call codewalk_analyze_codebase automatically.

Note: After adding or modifying .vscode/mcp.json, reload the VS Code window: Cmd+Shift+P → Developer: Reload Window.

Claude Code

Add to ~/.claude/mcp.json:

{
  "mcpServers": {
    "codewalk": {
      "command": "/path/to/codewalk/.codewalk-env/bin/python",
      "args": [
        "-c",
        "import os, sys; sys.path.insert(0, os.environ['CODEWALK_PATH']); from src.codewalk.mcp.server import mcp; mcp.run(transport='stdio')"
      ],
      "cwd": "${workspaceFolder}",
      "env": {
        "CODEWALK_PATH": "/path/to/codewalk"
      }
    }
  }
}

Cursor

Settings → MCP Servers → Add:

{
  "codewalk": {
    "command": "/path/to/codewalk/.codewalk-env/bin/python",
    "args": ["-m", "src.codewalk.mcp.server"],
    "cwd": "${workspaceFolder}",
    "env": {
      "CODEWALK_PATH": "/path/to/codewalk"
    }
  }
}

Exclusions now live in codewalk.yaml (indexing.exclude) or .codewalkignore, not in the EXCLUDE_PATHS env var.

OpenAI Codex CLI

Add to ~/.codex/mcp.json:

{
  "mcpServers": {
    "codewalk": {
      "command": "/path/to/codewalk/.codewalk-env/bin/python",
      "args": [
        "-c",
        "import os, sys; sys.path.insert(0, os.environ['CODEWALK_PATH']); from src.codewalk.mcp.server import mcp; mcp.run(transport='stdio')"
      ],
      "cwd": "${workspaceFolder}",
      "env": {
        "CODEWALK_PATH": "/path/to/codewalk"
      }
    }
  }
}

How It Works (First-Time Setup)

The first time you use Codewalk on a new codebase, it needs to index the files.
You just tell the AI to analyze — the AI handles the rest automatically.

Tool Calling Sequence

┌─────────────────────────────────────────────────────────────────────┐
│                    SETUP WORKFLOW (run once)                        │
│                                                                     │
│  Step 1 (only step)                                                 │
│  codewalk_analyze_codebase                                          │
│       │  scans files, builds dependency graph, detects modules,     │
│       │  filters with file_filter.py, chunks, embeds — all in one   │
│       ▼                                                             │
│  ✅ READY — all query tools unlocked                                │
└─────────────────────────────────────────────────────────────────────┘

┌─────────────────────────────────────────────────────────────────────┐
│                   QUERY TOOLS (use after setup)                     │
│                                                                     │
│  codewalk_get_overview          → project summary + dependency flow │
│  codewalk_search_codebase       → semantic code search              │
│  codewalk_lookup_symbol         → find symbols by name across repo  │
│  codewalk_get_module_info       → inspect a specific module         │
│  codewalk_explain_function      → AI-powered function explanation   │
│  codewalk_explain_class         → AI-powered class explanation      │
│  codewalk_get_blast_radius_map  → change risk analysis              │
│  codewalk_find_circular_dependencies → detect import cycles         │
│  codewalk_get_reading_order     → optimal file reading sequence     │
│  codewalk_get_execution_flow    → module/file dependency flow       │
│  codewalk_get_architecture_health → bottlenecks, cycles, key files  │
│  codewalk_call_chain(source, target) → trace import path between    │
│  codewalk_show_knowledge_graph  → export graph for visualization    │
│  codewalk_index_docs(docs_path) → index .md/.pdf/.txt docs          │
│  codewalk_search_docs(query)    → search indexed documents           │
│  codewalk_ask_docs(question)    → RAG answer grounded in docs        │
└─────────────────────────────────────────────────────────────────────┘

┌─────────────────────────────────────────────────────────────────────┐
│                   REVIEW & HITL TOOLS                               │
│                                                                     │
│  codewalk_run_review            → gather review context for host LLM│
│  codewalk_review_file           → full pipeline review of one file  │
│  codewalk_get_stack_info        → deterministic stack signals       │
│  codewalk_get_review_details    → retrieve a persisted review       │
│  codewalk_load_guidelines       → load team coding standards        │
│  codewalk_accept_and_verify_fix → return accepted fixes to apply    │
└─────────────────────────────────────────────────────────────────────┘

┌─────────────────────────────────────────────────────────────────────┐
│                 MAINTENANCE (after code changes)                    │
│                                                                     │
│  codewalk_generate_config       → starter codewa

Codewalk

README
